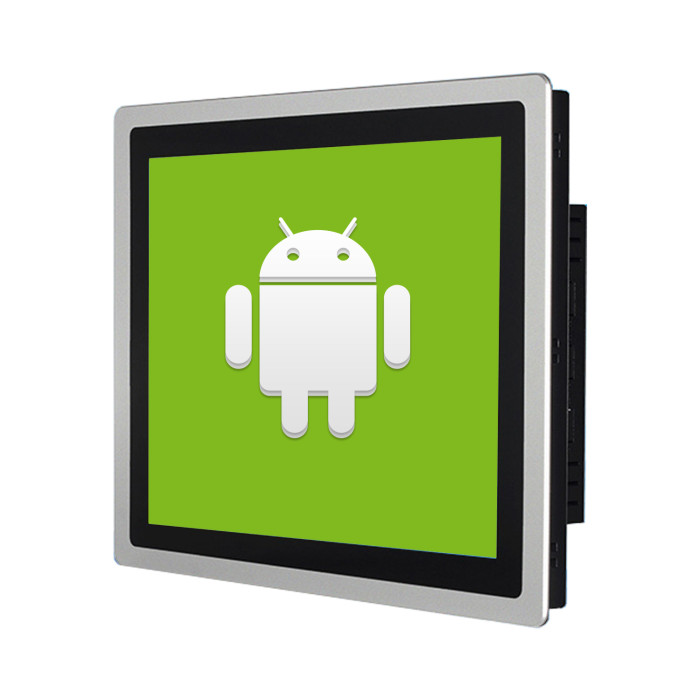

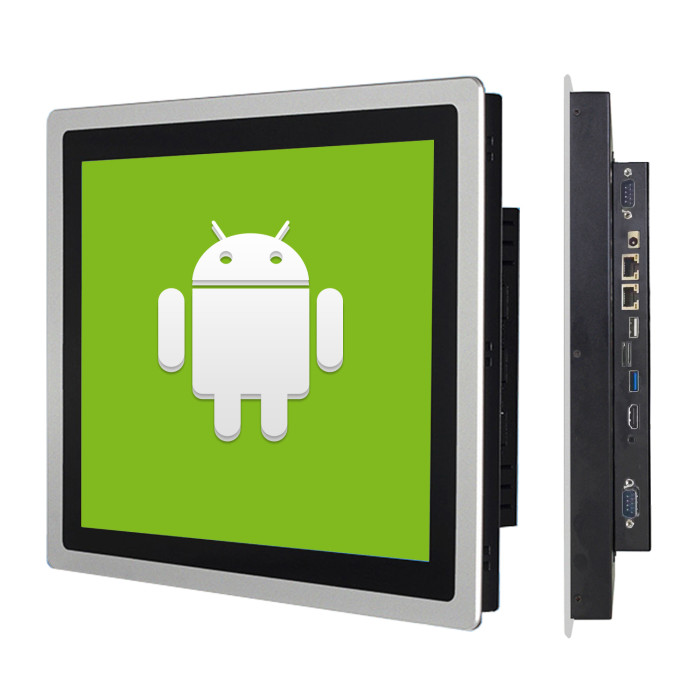

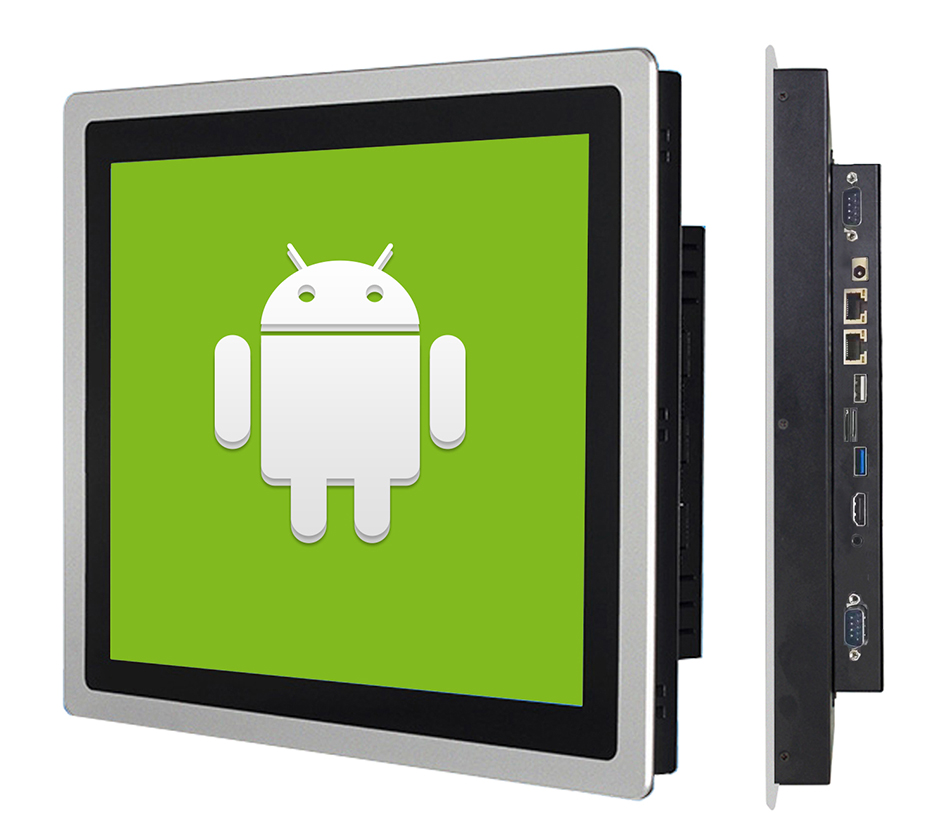

10.4 12.1 13.3 15 15.6 17 18.5 19 21.5 inch industrial capacitive touch android all-in-one computer RK3568 CPU panel pc built-in wireless WiFi RS232 com Resolution:1024x768 / 1280x1024 / 1920x1080
Industrial computer parameters:
Brand: slubee
Material: aluminum alloy
Memory: 2GB/4GB/8GB DDR4 system memory
Storage: optional 16GB/32GB/64GB/128GB
System: Android
Introduction: Introduction to AMI
Graphics: IntelHD graphics
Weight: about 4-8 Kg
System Parameter:
Please contact us if you need the following or other CPUs, thank you.
CPU: Quad-core 64-bit Cortex-A55 architecture, built based on high-end 22nm technology, with a dominant frequency of up to 2.0GHz.
GPU: ARM Mali-G52 2EE, support for OpenGL ES 1.1 / 2.0 / 3.2, OpenCL 2.0, Vulkan 1.1, embedded high-performance 2D acceleration hardware
NPU: Supports 0.8Tops of computing power
Multimedia: Support 4K 60fps H.265/H.264/VP9 video decoding; Support 1080P 100fps H.265/H.264 video coding; Supports 8M ISP and HDR
Display: Support multi screen display; Supports eDp/HDMI2.0/MIPII/LVDS/24bit RGB/T-CON
Parameters of LCD Touch screen:
Brightness:250cd/m2-350cd/m2(Optional higher brightness LCD screen)
Contrast Ratio:1000:1
Viewing Angle:Horizontal(left/right): 150°(75°/75°)
Vertical(up/down): 150°(75°/75°)
Response Time:30 (Typ.)(Tr+Td) (ms)
Frame Rate:60Hz
Color system:PAL/ NTSC
power requirement of system:+ 12V DC power input(Support customized DC24V power interface)
Power adapter:input:AC100〜240V,50 / 60Hz 1.5A MAX
Output:60W Adapter(DC12V -- 5A)
Working temperature:-20°C〜60°C
Relative humidity:0%〜90%relative humidity, no condensatio
Plug:AU,EU,USA,UK plug available
VISA Hole distance:75*75mm
Delivery Time
Sample:1~5 working days.
10~100pcs:2~7 working days.
More than 100pcs :5~15 working days
★★★ SPECIAL REMINDER ★★★
LOGO/Product Model/Case Material/Add Touch Function/Add Built-in Speaker/Add Remote Control Function/Base Style/Screen Size/Interface Type/Power Type/Installation Mode(Wall-hang/Embedded/Open-frame),etc.,can be customized for you(But need to meet the requirements of MOQ).If you have this demand,please contact us,we will provide you with timely and thoughtful service!

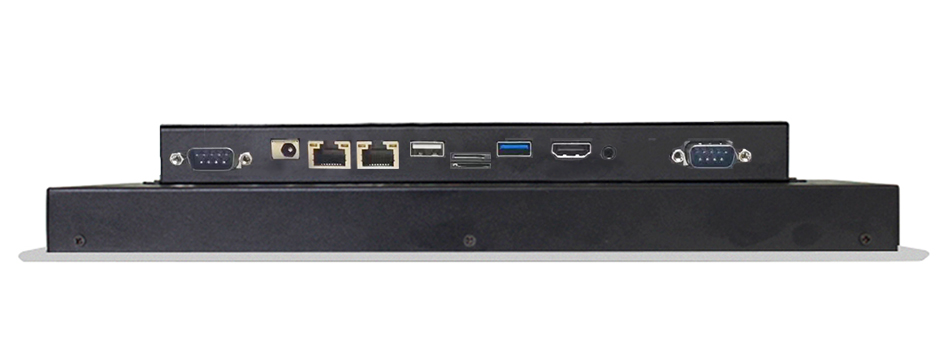

DC USB LAN TF HDMI OTG Audio
Supports:USB2.0/USB3.0/PCIE3.0/PCIE2.1/SATA3.0/QSGMII

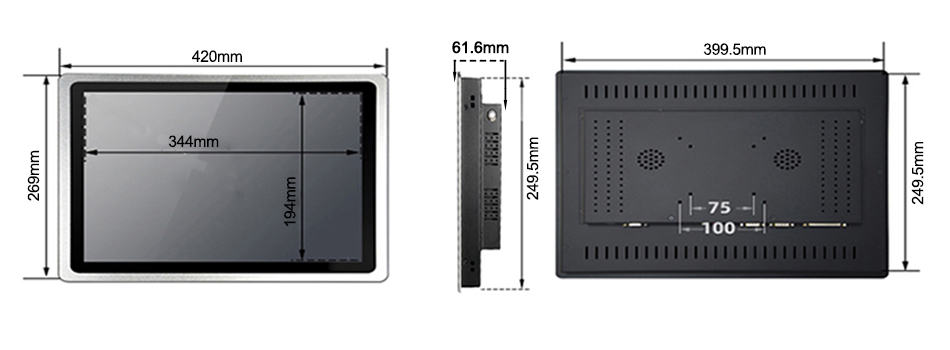

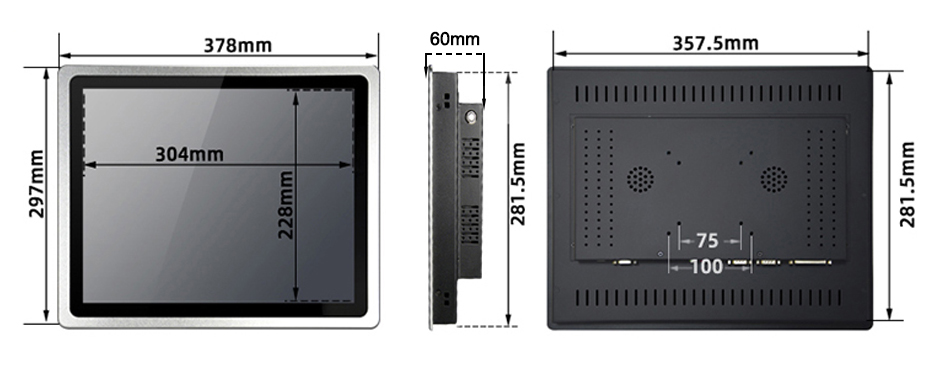

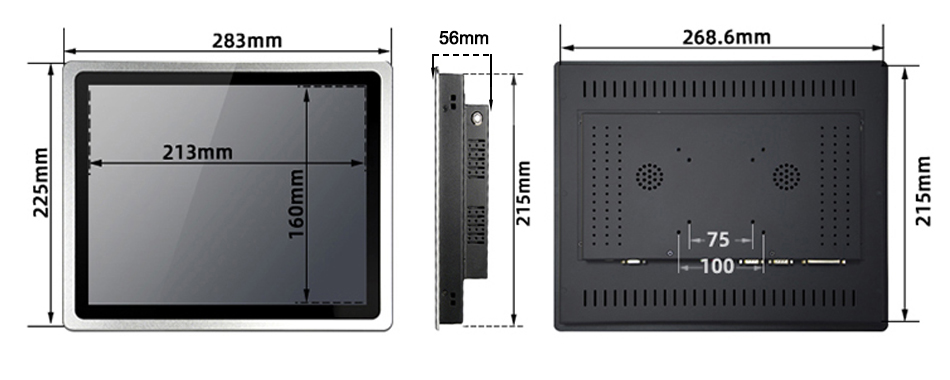

Size:10.4 inch
Resolution:1024*768 ppi
Dimensions: mm

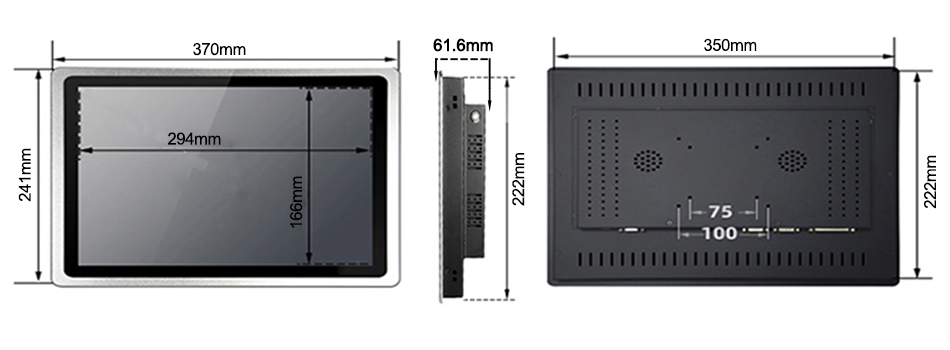

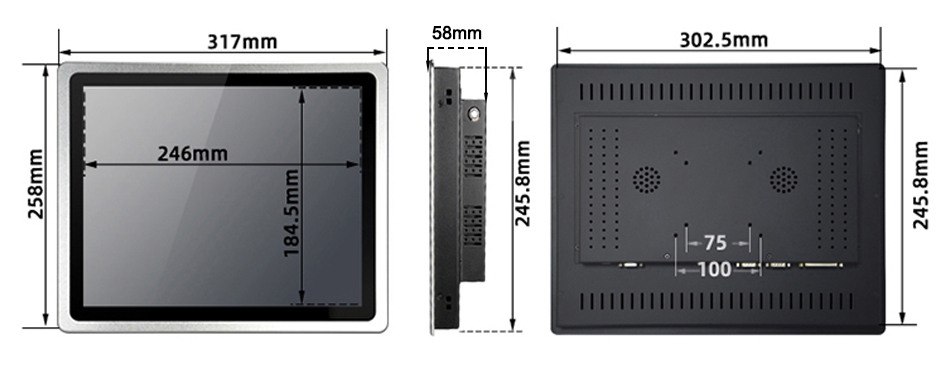

Size:12.1 inch
Resolution:1024*768 ppi
Dimensions: mm
Size:13.3 inch
Resolution:1366*768 ppi
Dimensions: mm
Size:15 inch
Resolution:1024*768 ppi
Dimensions: mm
Size:15.6 inch
Resolution:1366*768 ppi
Dimensions: mm

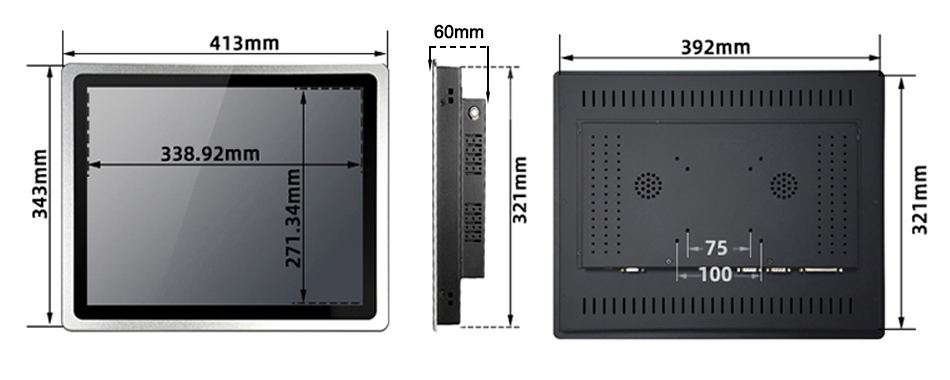

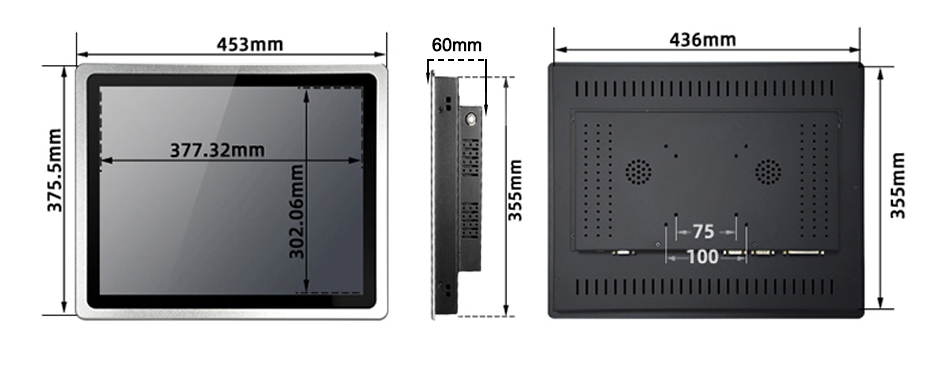

Size:17 inch
Resolution:1280*1024 ppi
Dimensions: mm
Size:18.5 inch
Resolution:1366*768 ppi
Dimensions: mm
Size:19 inch
Resolution:1280*1024 ppi
Dimensions: mm

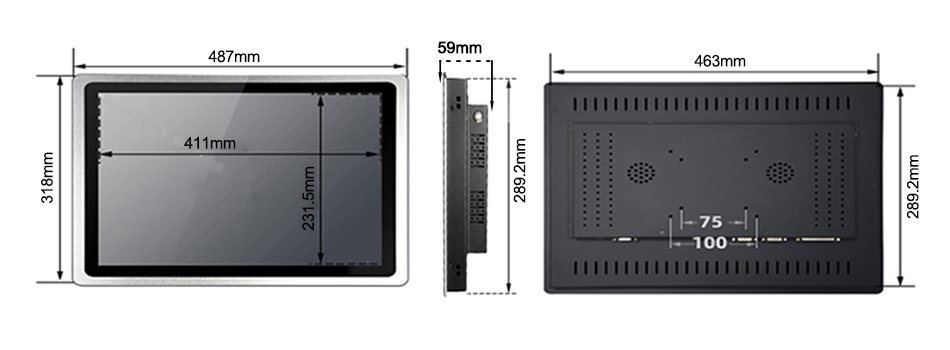

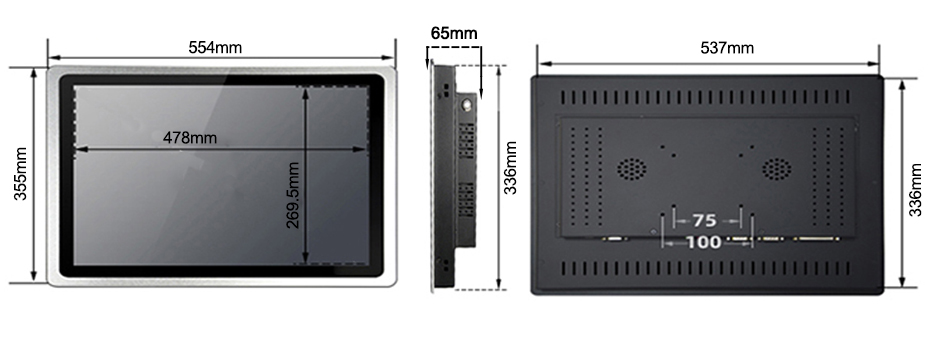

Size:21.5 inch
Resolution:1920*1080 ppi
Dimensions: mm

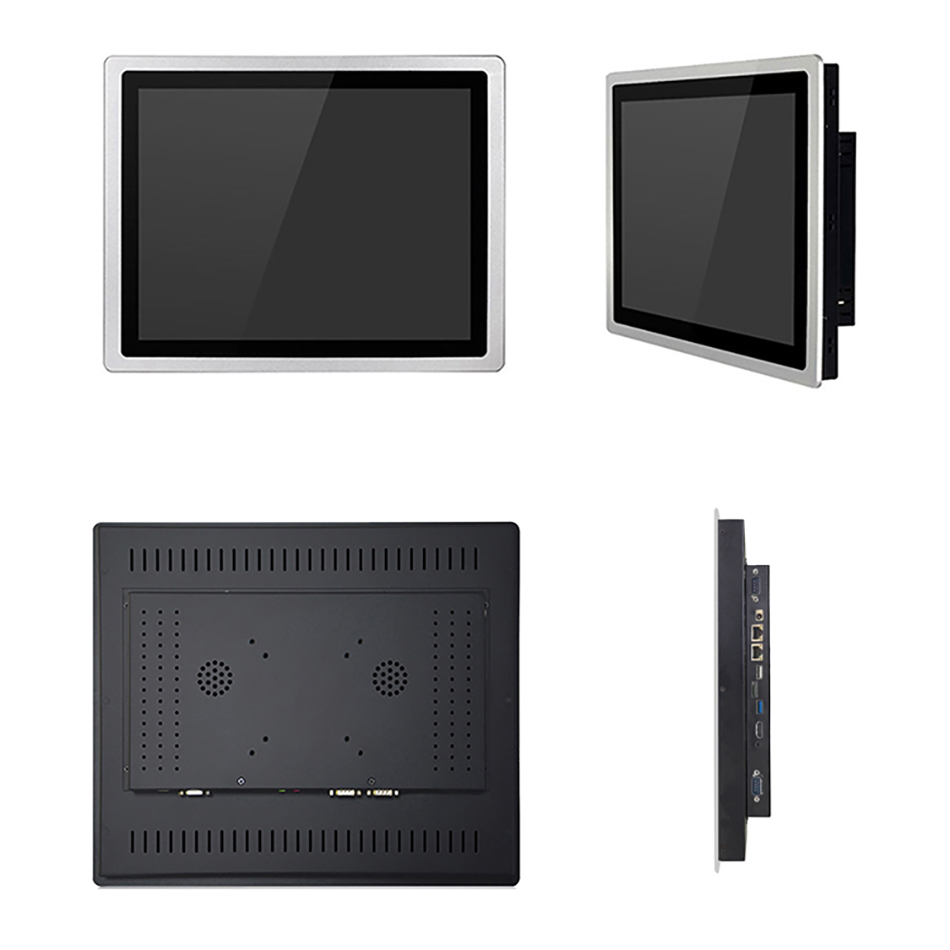

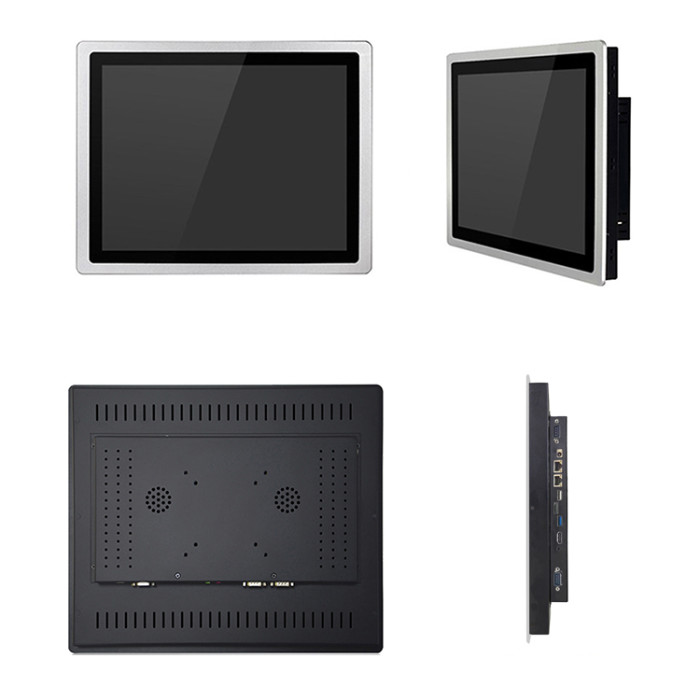

Aluminum alloy material, pure screen panel, front panel is waterproof and dustproof

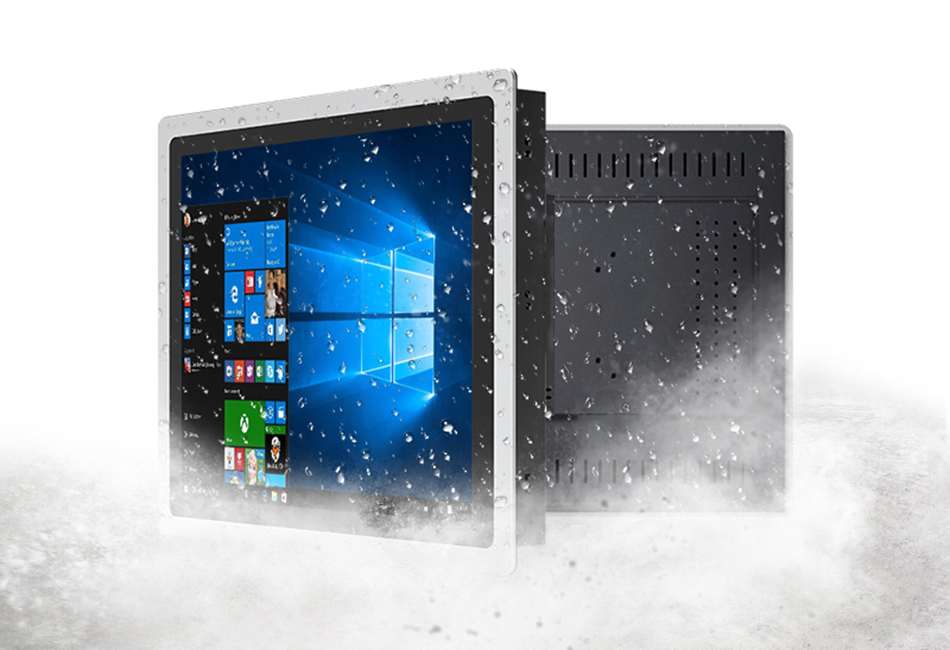

Dust-proof, waterproof and oil-proof break through environmental restrictions, and are more suitable for use in harsh environments of industrial automation equipment

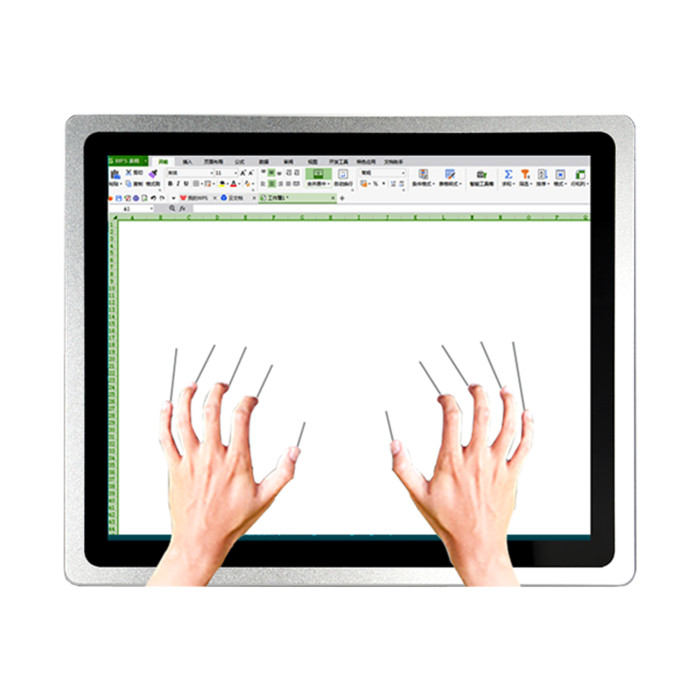

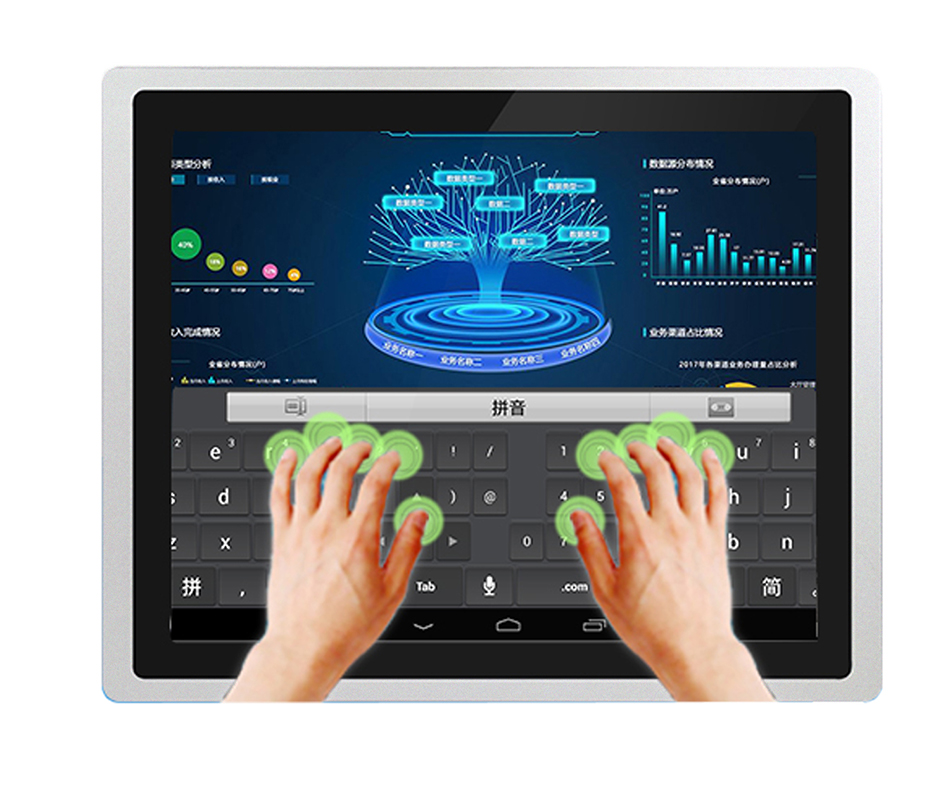

Capacitive touch screen - ten-point touch
Capacitive multi-touch, finger click anywhere on the system interface, you can quickly operate, touch without drift, providing you with a more convenient touch platform.
Support power on and run 24 hours a day, 365 days
The whole machine has the ability to run 24 hours a day, and is competent in all walks of life. It can be set to power on through the BIOS. It is suitable for an unstable environment that needs to be continuously powered on.
Efficient Heat Dissipation
The motherboard adopts the multi-row heat dissipation design of the metal back shell to dissipate heat. The technological breakthrough has a low noise heat dissipation effect, better stability and strong performance, no loud noise during operation, effectively protects the life of the accessories of the whole machine, and brings a better industrial use experience.

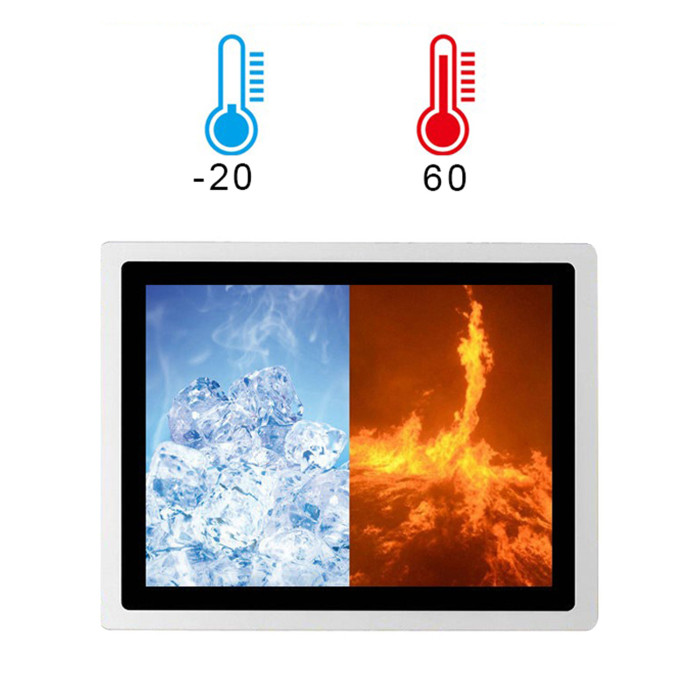

High and low temperature resistant design
The front frame is processed by high-precision CNC, and the steel body is forged by cold-rolling technology, which greatly increases the rigidity and compression resistance of the whole machine. It has been tested by a strict temperature control box and runs stably in harsh environments with large temperature differences.Through the controllable high temperature test, the product adapts to the temperature of -20℃~60℃.In between, even in harsh environments, there is no fear.
About the material:
Using new industrial technology, the aluminum alloy shell enhances the product's water resistance, gloss, hardness, corrosion resistance and drop resistance.
The stylish arc makes the overall metal texture better. Whether for commercial or industrial use, this will be an enviable piece of craftsmanship.
About usage:
This product is widely used in industrial production workshop/engineering machinery/NC equipment/medical equipment/video surveillance/factory automation equipment/self-service terminal/vehicle advertising machine and other scenes or fields.
Installation method
1. Embedded installation
①Before installation, the cabinet needs to be opened, and the opening size should be slightly larger than the opening size specified by the product.
②Place the product into the recessed installation hole reserved on the installation panel.
③There are two square holes on both sides of the device. When installing, use one end of the clip to fasten the square hole, and the screw head on the clip is against the cabinet.
Then tighten the screws, the other three prescription holes are installed in the same way, and the embedded installation can be completed.
2. Wall-mounted installation
①Fix the wall mount bracket A on the wall with expansion screws.
②The wall bracket B is installed on the back of the all-in-one machine with screws.
③ Insert the bracket on the back of the all-in-one machine into the wall bracket to complete the installation.
FAQ (Frequently Asked Questions)
Q: What is the timeliness and customs clearance fee for the package?
A: The general time limit for a package is the delivery date plus the express time limit. The amount paid for the order, including shipping, but excluding customs charges, is your responsibility. Due to the requirements of local customs policies, all importers have the obligation and responsibility to declare, assist with customs clearance and pay duties. If you have any objection to this, please contact us, thank you.
Q: Does the machine need to install the touch driver?
A: No need to install touch driver.
Q: Is the machine waterproof?
A: The front panel is waterproof.
Q: What is the standard installation method?
A: Embedded, wall-mounted.
Q: Does it support desktop installation?
A: Yes, but you need to buy a desktop stand.
