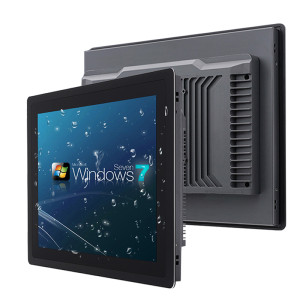

10.4 Inch fully enclosed industrial touch monitor, resistive/capacitive touch screen, waterproof panel, optional VGA/DVI/HDMI interface

LCD screen parameters:
Size: 10.4 inches.
Resolution: 1024x768.
Brightness: 250-350cd/m2 (support higher, please contact us for details).
Contrast: 1000:1.
Viewing angle: Horizontal (left/right): 150° (75°/75°).
Vertical (up/down): 150° (75°/75°).
Response time: 30 (Typ.)(Tr+Td) (ms).
Frame rate: 60Hz.
Color system: PAL/NTSC.
System power requirements: +12V DC power input.
Power Adapter: Input: 100~250VAC, 50/60Hz
Output: DC 12V 3~5A
Working temperature: -20℃~60℃.
Relative humidity: 0%~90% relative humidity, no condensation.
Power plug: AU, EU, USA, UK plugs are provided.
Menu language: English, French, Italian, German, Spanish, Russian, Traditional Chinese, Simplified Chinese, etc.
VISA hole distance: 75*75mm.

Touch screen parameters:
Touch technology: resistive touch technology (single touch), capacitive touch technology (ten touch).
Whether to install the driver: the resistor needs to install the touch driver, and the capacitor does not need to be installed (connect the USB interface of the computer host to the USB interface of the monitor to use it by touch).
Do you need to install the driver: Yes (download from the website: www.EETI.com)
Effective touch recognition: >1.5mm.
Touch mode: USB 2.0, 3.0.
Theoretical hits: over 50 million.
Touch principle: current induction, touch force: 45g~250g.
Surface hardness: physical toughening, Mohs 7 explosion-proof glass.

If you need other interfaces and other questions, please contact us. Thank you.
Optional 1:VGA+DC+touch USB (capacitive touch)
Optional 2: DVI+VGA+DC+touch USB (capacitive touch)
Optional 3: HDMI+VGA+DC+touch USB (capacitive touch)
Optional 4:VGA+DC+touch USB (Resistive touch)
Optional 5: DVI+VGA+DC+touch USB (Resistive touch)
Optional 6: HDMI+VGA+DC+touch USB (Resistive touch)

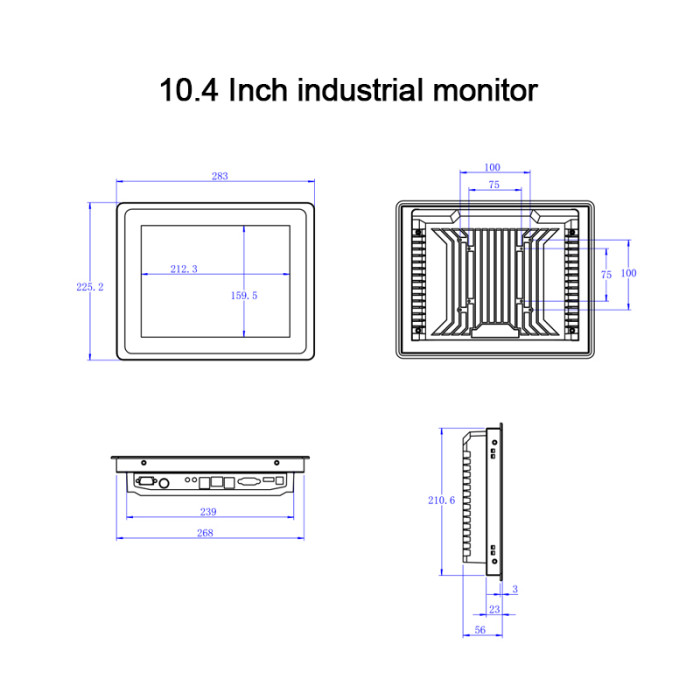

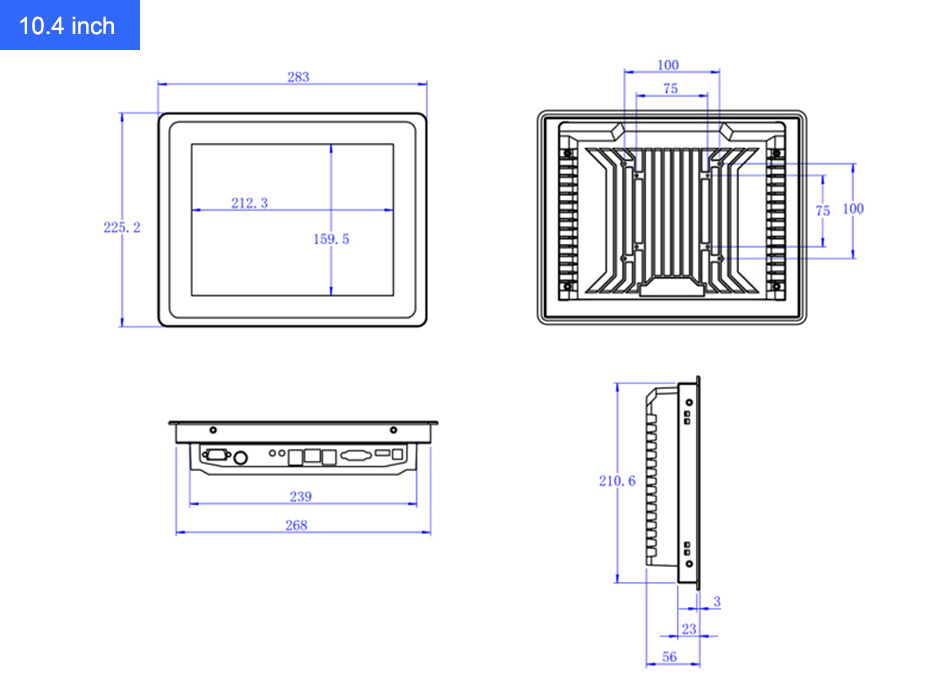

Detailed size：

Size:10.4 inch
Resolution:1024*768 ppi
Dimensions: mm

Front panel with dust and water resistant functionality

Dust, water and oil resistant to break through environmental restrictions, more suitable for use in the harsh environment of industrial automation equipment

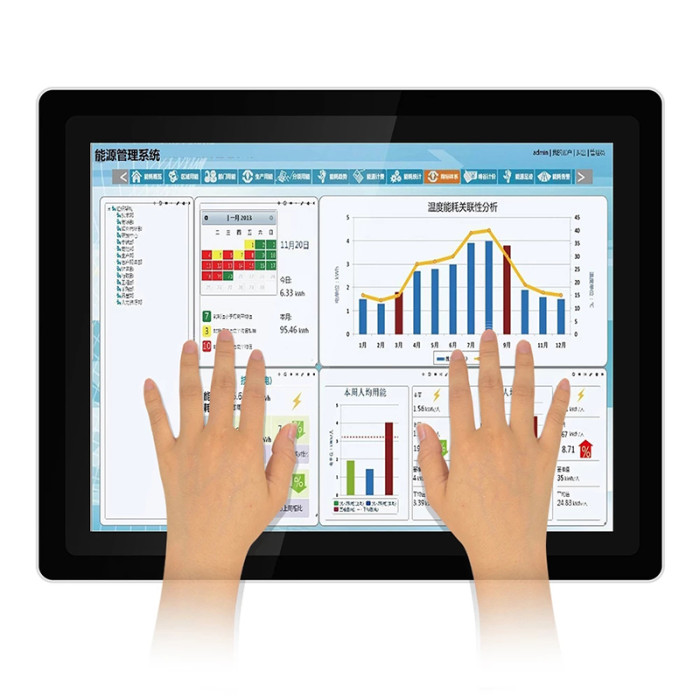

Optional: resistive touch (single touch)/capacitive touch (ten-finger touch)
Click anywhere on the system interface with your finger, you can operate quickly, and the touch does not drift, providing you with more convenient touch

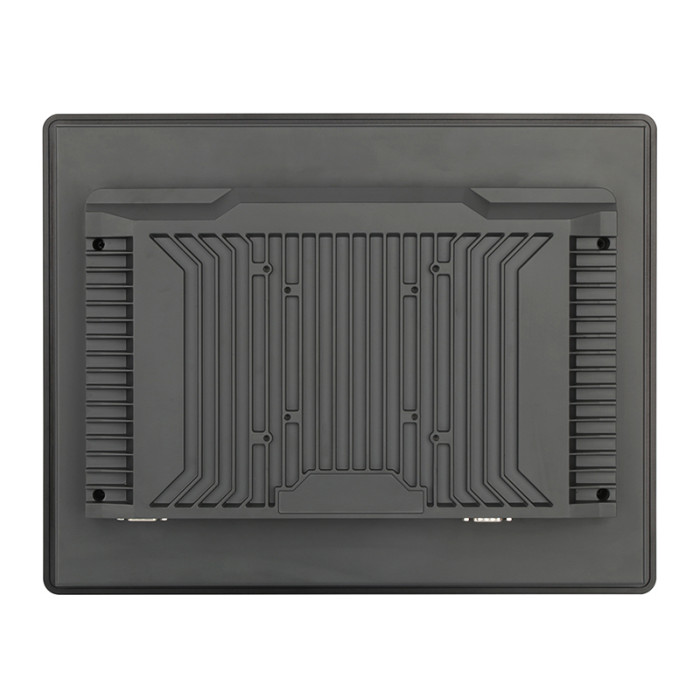

Efficient cooling system

Heat dissipation through the metal back shell,
Technological breakthrough, low noise cooling effect, better stability and strong performance,
Effectively protect the life of the accessories of the whole machine

The all-aluminum body is more resistant to high and low temperatures

Through the controllable high temperature test, the product adapts to the temperature of -20℃~60℃.In between, even in harsh environments, there is no fear

Detail describe

About the material: Using new industrial technology, the fully enclosed metal shell enhances the waterproofness, gloss, hardness, corrosion resistance and drop resistance of the product.
The stylish arc makes the overall metal texture better. Whether for commercial or industrial use, this will be an enviable piece of craftsmanship.

Installation method
1. Embedded installation
① Before installation, the cabinet needs to be opened, and the opening size should be slightly larger than the opening size specified by the product.
②Place the product into the recessed installation hole reserved on the installation panel.
③There are two square holes on both sides of the device. When installing, use one end of the clip to fasten the square hole, and the screw head on the clip is against the cabinet.
Then tighten the screws, the other three prescription holes are installed in the same way, and the embedded installation can be completed.

2. Wall-mounted installation
①Fix the wall mount bracket A on the wall with expansion screws.
②The wall bracket B is installed on the back of the all-in-one machine with screws.
③ Insert the bracket on the back of the all-in-one machine into the wall bracket to complete the installation.

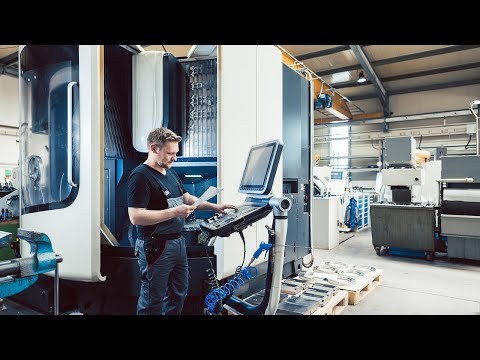

Application scenarios

This product is widely used in industrial production workshop/engineering machinery/NC equipment/medical equipment/video surveillance/factory automation equipment/self-service terminal/vehicle advertising machine and other scenes or fields.

Delivery time:
Usually we choose DHL, UPS, Federal and other express companies to ship. The delivery preparation period is 2-7 days, and the express delivery time is 5-20 working days (except for special circumstances).
1~5 pieces: 1~5 working days delivery time + express delivery time.
10~100 pieces: 2~7 working days delivery time + express delivery time.
More than 100 pieces: 5~15 working days delivery time + express delivery time.

FAQ (Frequently Asked Questions)

Q: What is the timeliness and customs clearance fee for the package?
A: The general time limit for a package is the delivery date plus the express time limit. The amount paid for the order, including shipping, but excluding customs charges, is your responsibility. Due to the requirements of local customs policies, all importers have the obligation and responsibility to declare, assist with customs clearance and pay duties. If you have any objection to this, please contact us, thank you.

Q: Does the machine need to install the touch driver?
A: Resistive touch needs to install a touch driver, but capacitive touch does not.

Q: Where can I install the touch driver?
A: www.EETI.com

Q: How to install the touch calibration program?
A: After the monitor is connected to the host, according to your host system, go to the website to download the corresponding touch driver, and then follow the prompts to install the touch driver. After successful installation, perform program screen calibration. If you purchased a capacitive touch monitor, you can connect the touch USB cable directly.

Q: Is the machine waterproof?
A: The panel has waterproof function,

Q: What is the standard installation method?
A: Embedded, wall-mounted.

Q: Does it support desktop installation?
A: Yes, but you need to buy a desktop stand.
