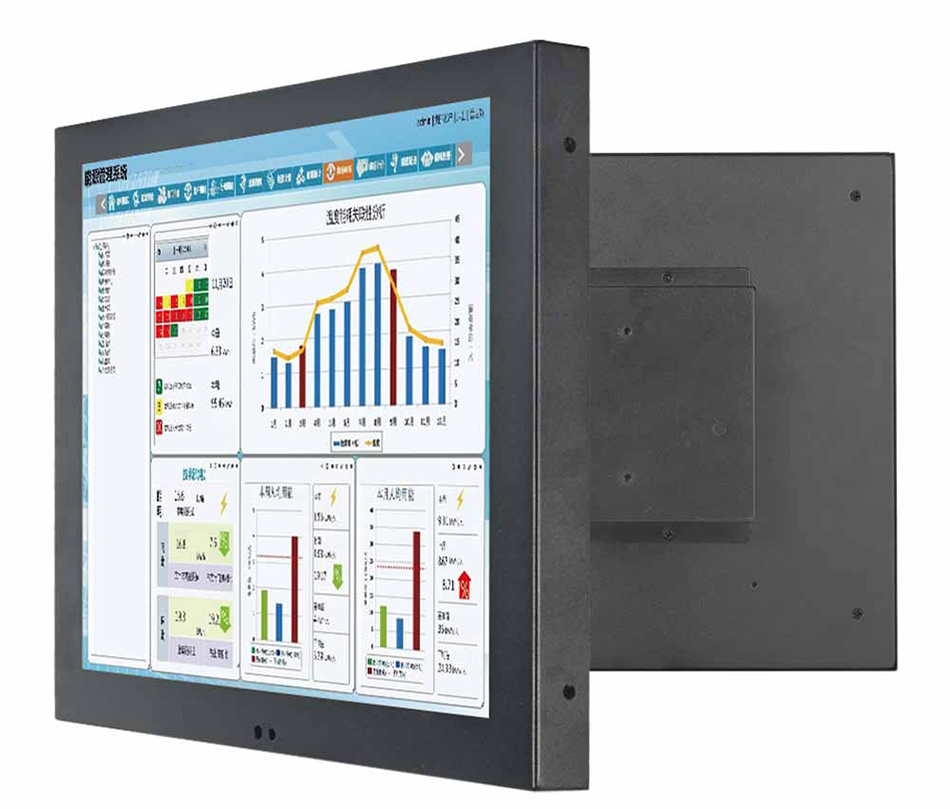

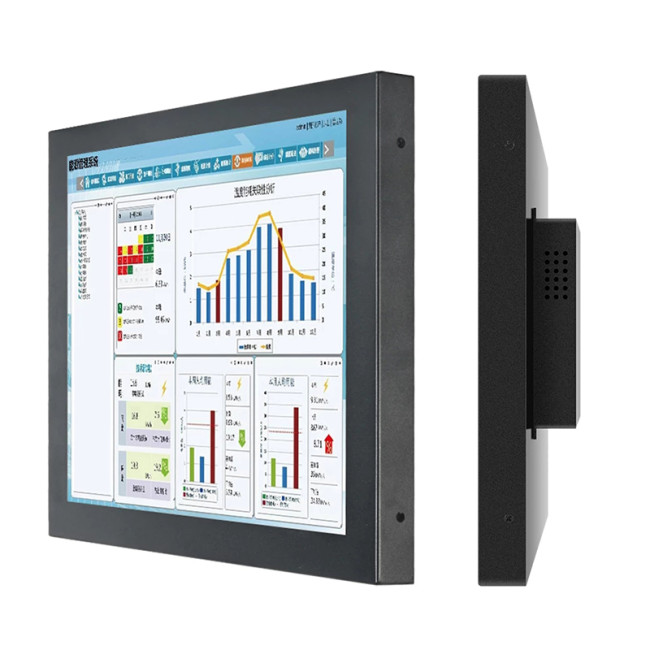

17 Inch Embedded industrial touch monitor,Optional non-touch and resistive touch，Optional VGA/DVI/HDMI interface

LCD screen parameters:

Size: 17 inches.
Panel type: LCD monitor.
Resolution: 1280x1024.
Brightness: 250nit-400nit (default 300cd/m2).
Contrast: 1000:1.
Viewing angle: Horizontal (left/right): 150° (75°/75°).
Vertical (up/down): 150° (75°/75°).
Response time: 30 (Typ.)(Tr+Td) (ms).
Frame rate: 60Hz.
Color system: PAL/NTSC.
System power requirements: +12V DC power input.
Power Adapter: Input: 100~250VAC, 50/60Hz.
Output: DC 12V 3~5A.
Working temperature: -20℃~60℃.
Relative humidity: 0%~90% relative humidity, no condensation.
Power plug: AU, EU, USA, UK plugs are provided.
Menu language: English, French, Italian, German, Spanish, Russian, Traditional Chinese, Simplified Chinese, etc (default English).
VISA hole distance: 75*75mm.
Interface: optional VGA+DC, DVI+VGA+DC, HDMI+VGA+DC, VGA+USB+DC, DVI+USB+VGA+DC, HDMI+USB+VGA+DC interface (please contact us if you need customized interface ).

Touch screen parameters :

Touch technology: non-touch, resistive technology (single touch).
Do you need to install the driver: Resistive touch needs to install the driver.
Effective touch recognition: >1.5mm.
Touch mode: USB 2.0, 3.0.
Theoretical hits: over 50 million.
Touch principle: pressure sensing, touch force: 45g~250g.
Surface hardness: physical toughening, Mohs 7 explosion-proof glass.

If you need other interfaces and other questions, please contact us. Thank you.
Optional 1: VGA+DC (non-touch)
Optional 2: DVI+VGA+DC (non-touch)
Optional 3: HDMI+VGA+DC (non-touch)
Optional 4: VGA+DC+touch USB (resistive touch)
Optional 5: DVI+VGA+DC+touch USB (resistive touch)
Optional 6: HDMI+VGA+DC+touch USB (resistive touch)

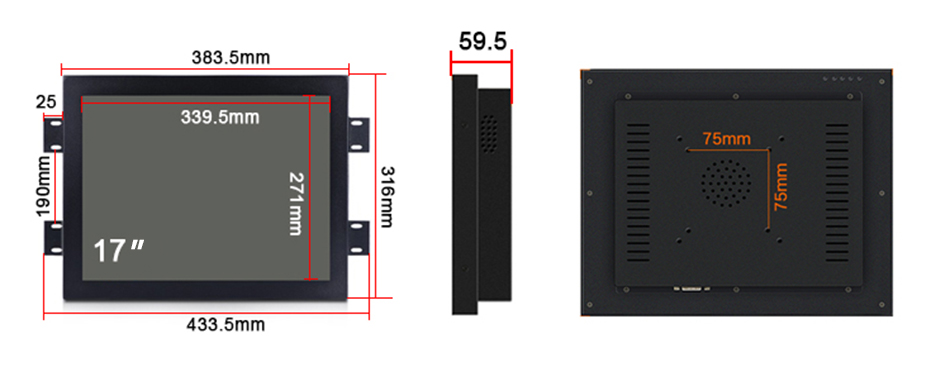

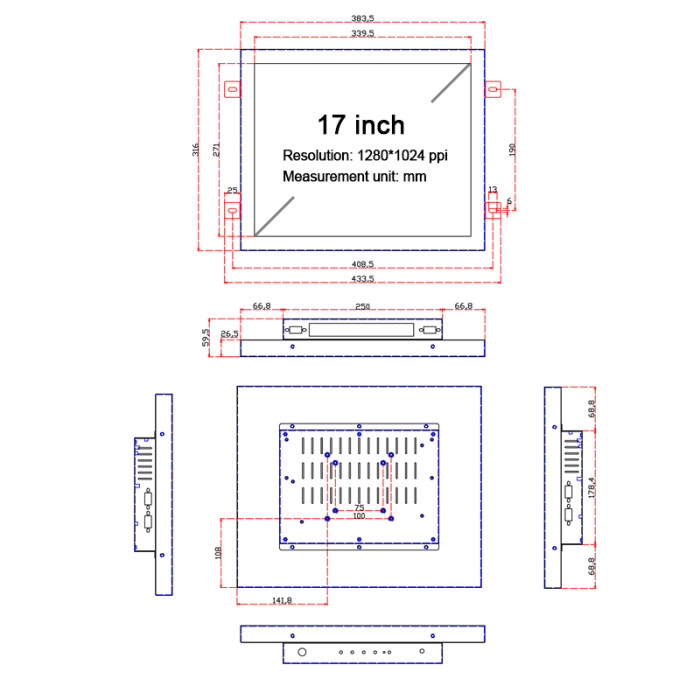

Detailed size：
Size:17 inch
Resolution:1280*1024 ppi
Dimensions: mm

Resistive touch screen, One-finger touch

Resistive single-finger touch, the finger clicks anywhere on the system interface, you can operate quickly, and the touch has no drift, providing you with a more convenient touch platform

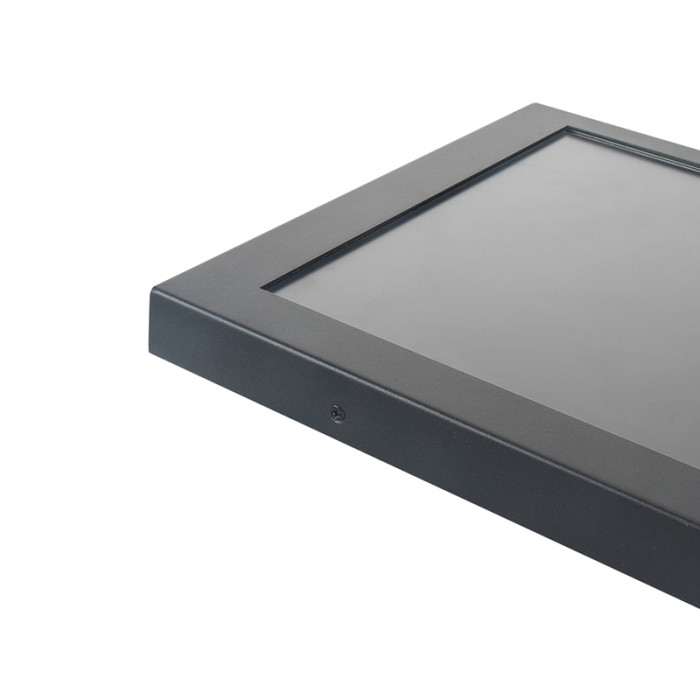

Industrial-grade sheet metal heat dissipation design

High standard technology, metal cold-rolled plate body design, multi-row cooling hole design, bring a better industrial use experience, fast and silent heat dissipation.

The metal body is more resistant to high and low temperatures
Through the controllable high temperature test, the test product adapts to the temperature between -20 ℃ ~ 60 ℃, and can run stably even in harsh environments.

About the material:
Using new industrial technology, the metal shell enhances the product's water resistance, gloss, hardness, corrosion resistance and drop resistance.
The stylish arc makes the overall metal texture better. Whether for commercial or industrial use, this will be an enviable piece of craftsmanship.

Installation Mode:

1. Wall-mounted installation
①Fix the wall mount bracket A on the wall with expansion screws.
②The wall bracket B is installed on the back of the all-in-one machine with screws.

③ Insert the bracket on the back of the all-in-one machine into the wall bracket to complete the installation.

2. Hanging ear installation
① Before installation, the cabinet needs to be opened, and the size of the opening is based on the display screen size of the product.
②Unscrew the screws on the side of the product, insert the machine into the cabinet, align the screws with the machine through the mounting ear fittings, and tighten them.
③ Align the holes of the cabinet with the screws through the mounting ear fittings, and tighten them to complete the installation.

3. Desktop installation
①There are eight screw holes on the back of the machine, which are 75*75/100*100 mm, and the desktop bracket has corresponding holes.
②Tighten the corresponding holes of the desktop bracket and the machine with screws, and the installation can be completed.

Note: Desktop stand needs to be purchased separately

About usage:
This product is widely used in industrial production workshop/engineering machinery/NC equipment/medical equipment/video surveillance/factory automation equipment/self-service terminal/vehicle advertising machine and other scenes or fields.

Delivery time:
Usually we choose DHL, UPS, Federal and other express companies to ship. The delivery preparation period is 2-7 days, and the express delivery time is 5-20 working days (except for special circumstances).
1~5 pieces: 1~5 working days delivery time + express delivery time.
10~100 pieces: 2~7 working days delivery time + express delivery time.
More than 100 pieces: 5~15 working days delivery time + express delivery time.

FAQ (Frequently Asked Questions)

Q: What about the time limit and customs clearance fee of the package?
A: The general time limit for a package is the delivery date plus the express delivery time limit. The amount paid for the order includes shipping, but does not include customs fees, which are borne by you. Due to the requirements of local customs policies, all importers have the obligation and responsibility to declare, assist in customs clearance and pay duties. If you have any objection to this, please contact us, thank you.

Q: Does the machine need to install the touch driver?
A: Resistive touch needs to install a touch driver, non-touch does not.

Q: Where can I install the touch driver?
A: www.EETI.com

Q: How to install the touch calibration program?
A: After the monitor is connected to the host, according to your host system, go to the website to download the corresponding touch driver, and then install the touch driver according to the prompts. After successful installation, perform program screen calibration. If you purchased a capacitive touch monitor, you can connect the touch USB cable directly.

Q: Is the machine waterproof?
A: It is not waterproof, if you need a waterproof machine, you can contact us.
noodle
Q: What is the standard installation method?
A: Embedded, wall-mounted.

Q: Does it support desktop installation?
A: Yes, but you need to buy a desktop stand.
