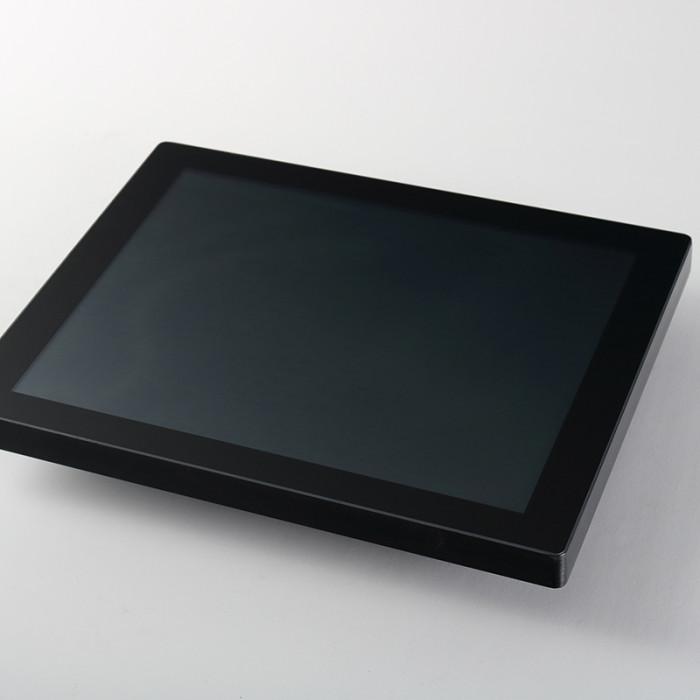

19 Inch embedded industrial touch monitor, capacitive touch, front panel waterproof, optional VGA/DVI/HDMI interface

LCD screen parameters:
Size: 19 inches.
Resolution: 1280x1024
Brightness: 250-350cd/m2 (support higher, please contact us for details).
Contrast: 1000:1.
Viewing angle: Horizontal (left/right): 150° (75°/75°).
Vertical (up/down): 150° (75°/75°).
Response time: 30 (Typ.)(Tr+Td) (ms).
Frame rate: 60Hz.
Color system: PAL/NTSC.
System power requirements: +12V DC power input.
Power Adapter: Input: 100~250VAC, 50/60Hz
Output: DC 12V 3~5A
Working temperature: -20℃~60℃.
Relative humidity: 0%~90% relative humidity, no condensation.
Power plug: AU, EU, USA, UK plugs are provided.
Menu language: English, French, Italian, German, Spanish, Russian, Traditional Chinese, Simplified Chinese, etc.
VISA hole distance: 75*75mm.

Touch screen parameters:
Touch technology: capacitive touch technology (ten-point touch).
Do you need to install the driver: no need (connect the USB interface of the computer host to the USB interface of the monitor and use it by touch).
Effective touch recognition: >1.5mm.
Touch mode: USB 2.0, 3.0.
Theoretical hits: over 50 million.
Touch principle: current induction, touch force: 45g~250g.
Surface hardness: physical toughening, Mohs 7 explosion-proof glass.

If you need other interfaces and other questions, please contact us. Thank you.

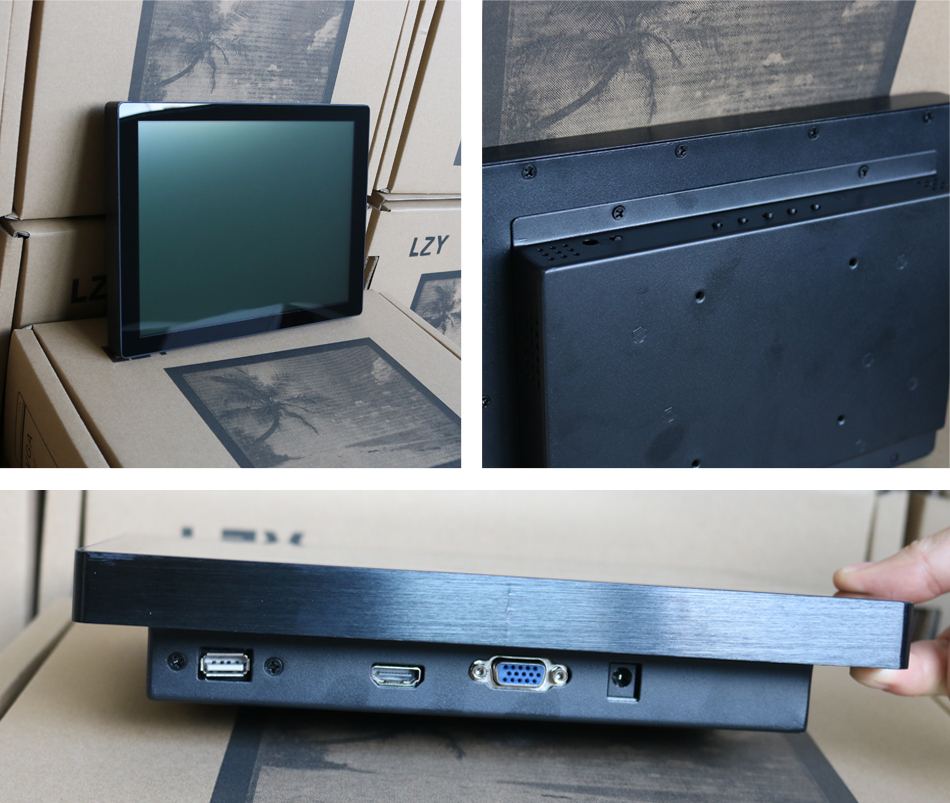

Optional 1:VGA+DC+touch USB (capacitive touch)
Optional 2: DVI+VGA+DC+touch USB (capacitive touch)
Optional 3: HDMI+VGA+DC+touch USB (capacitive touch)

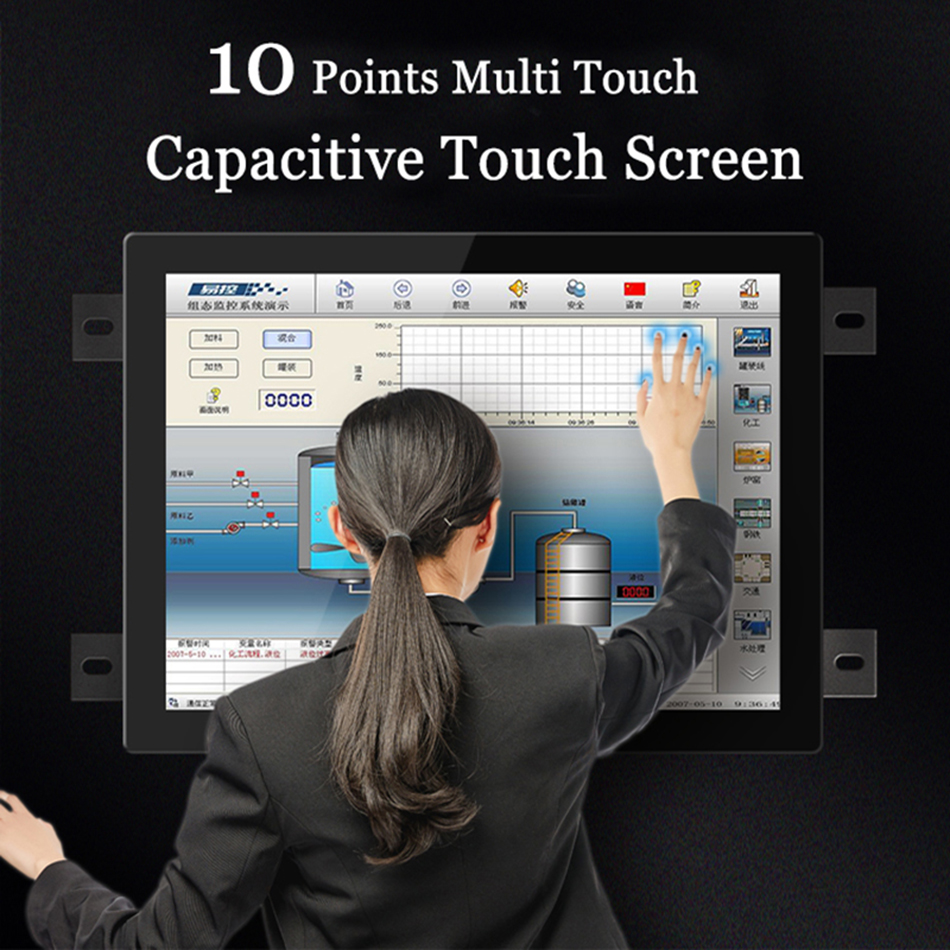

Ten-finger capacitive touch screen

Capacitive multi-touch for fast operation when your finger clicks anywhere on the system interface. Touch without drift, providing you with a more convenient touch platform

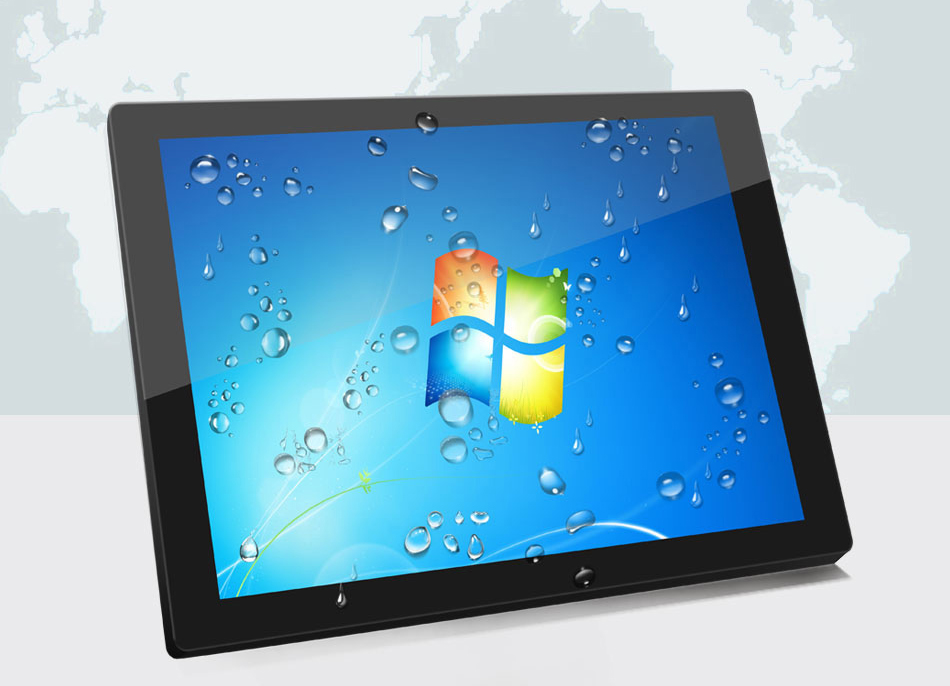

Front panel With Dust and water resistant Functionality

Dust, water and oil resistant to break through environmental restrictions, more suitable for use in the harsh environment of industrial automation equipment

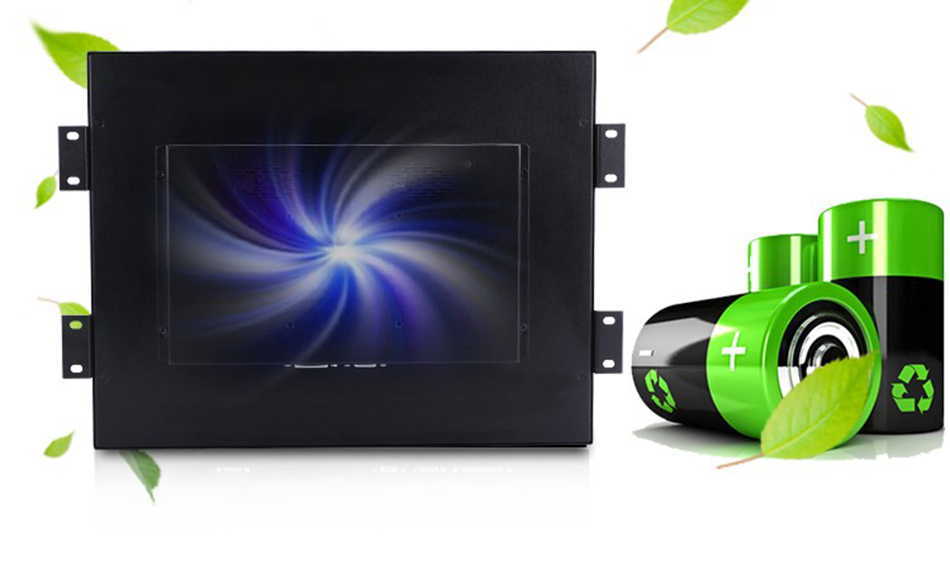

Efficient cooling system

Heat dissipation through the metal rear shell, low noise heat dissipation, better effect, strong stability, and effectively protect the life of the accessories of the whole machine

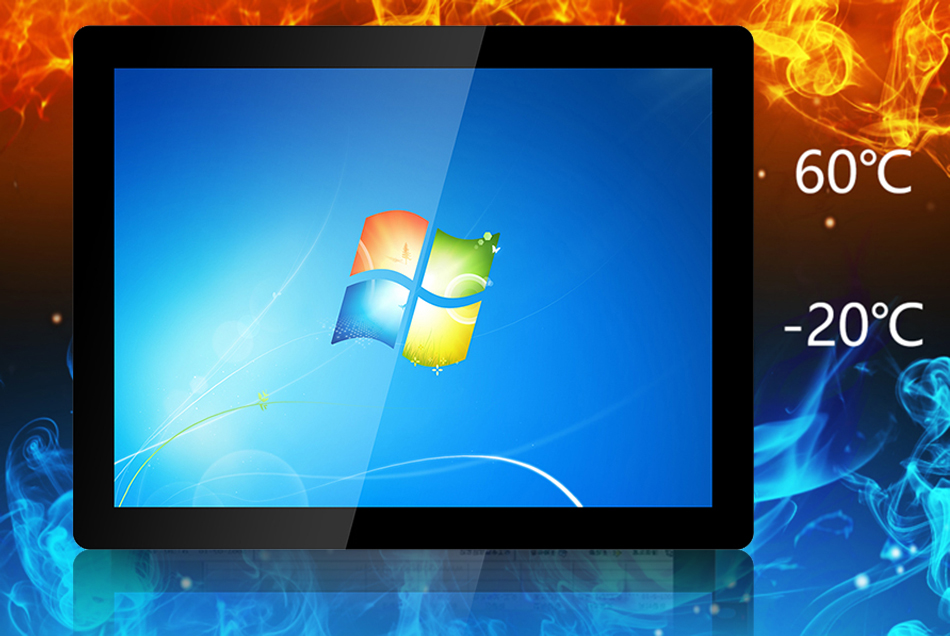

Metal body is more resistant to high and low temperature
Through the controllable high temperature test, the test product adapts to a temperature of -20℃~60℃ between, Even stable operation even in harsh environments

About the material:
Using new industrial technology, the metal shell enhances the product's water resistance, gloss, hardness, corrosion resistance and drop resistance.The stylish arc makes the overall metal texture better. Whether for commercial or industrial use, this will be an enviable piece of craftsmanship.

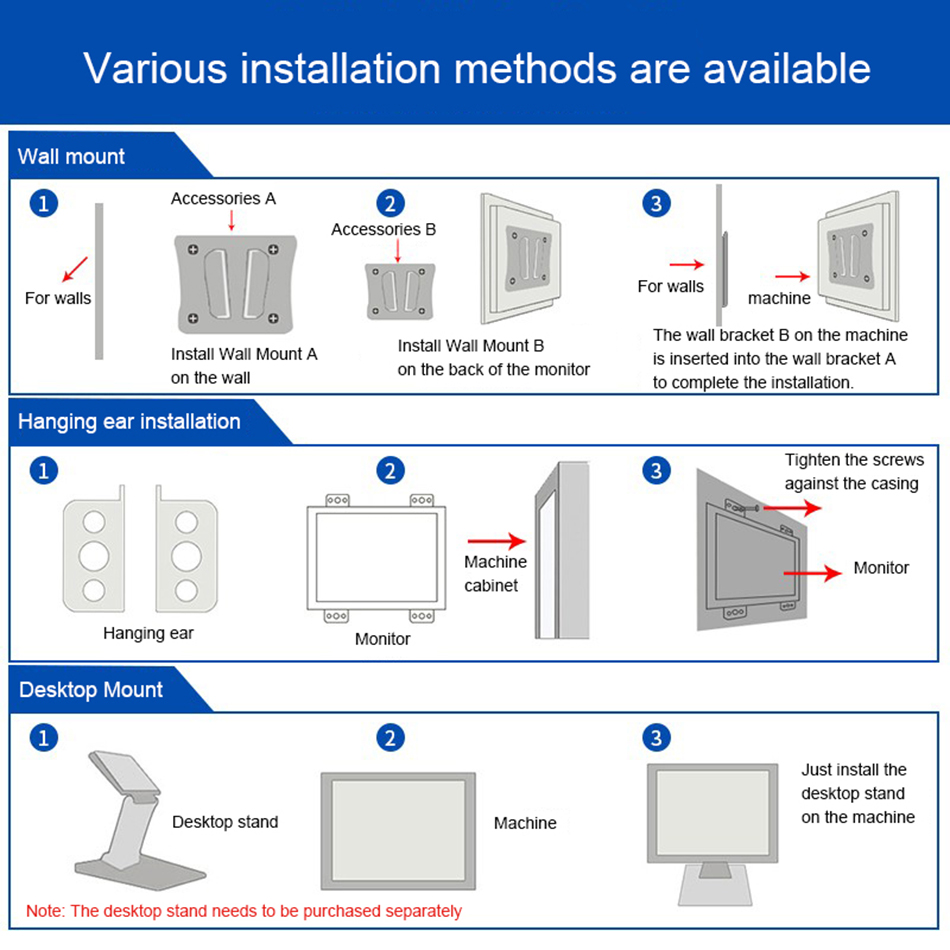

Installation method

1. Wall-mounted installation
①Fix the wall mount bracket A on the wall with expansion screws.
②The wall bracket B is installed on the back of the all-in-one machine with screws.
③ Insert the bracket on the back of the all-in-one machine into the wall bracket to complete the installation.

2. Hanging ear installation
① The cabinet needs to be opened before installation. The size of the opening is subject to the size of the display screen of the product.
②Unscrew the screws on the side of the product, insert the machine into the cabinet, align the screws with the machine through the mounting ear fittings, and tighten.
③ Align the holes of the cabinet with the screws passing through the mounting ear fittings, and then tighten them to complete the installation.

3. Desktop installation
①There are eight screw holes on the back of the machine, which are 75*75/100*100 mm, and the desktop bracket has corresponding holes.
②Tighten the corresponding holes of the desktop bracket and the machine with screws, and the installation can be completed.
Note: Desktop stand needs to be purchased separately

About usage:
This product is widely used in industrial production workshop/engineering machinery/NC equipment/medical equipment/video surveillance/factory automation equipment/self-service terminal/vehicle advertising machine and other scenes or fields.

Delivery time：
Usually we choose DHL, UPS, Federal and other express companies to ship. The delivery preparation period is 2-7 days, and the express delivery time is 5-20 working days (except for special circumstances).
1~5 pieces: 1~5 working days delivery time + express delivery time.
10~100 pieces: 2~7 working days delivery time + express delivery time.
More than 100 pieces: 5~15 working days delivery time + express delivery time.

FAQ (Frequently Asked Questions)

Q: What is the timeliness and customs clearance fee for the package?
A: The general time limit for a package is the delivery date plus the express time limit. The amount paid for the order includes shipping, but does not include customs charges, which are your responsibility. Due to the requirements of local customs policies, all importers have the obligation and responsibility to declare, assist with customs clearance and pay duties. If you have any objection to this, please contact us, thank you.

Q: Does the machine need to install the touch driver?
A: No need.

Q: Is the machine waterproof?
A: The front panel is waterproof, it is not recommended to soak in water.

Q: What is the standard installation method?
A: Hanging ear, wall-mounted.

Q: Does it support desktop installation?
A: Yes, but you need to buy a desktop stand.
