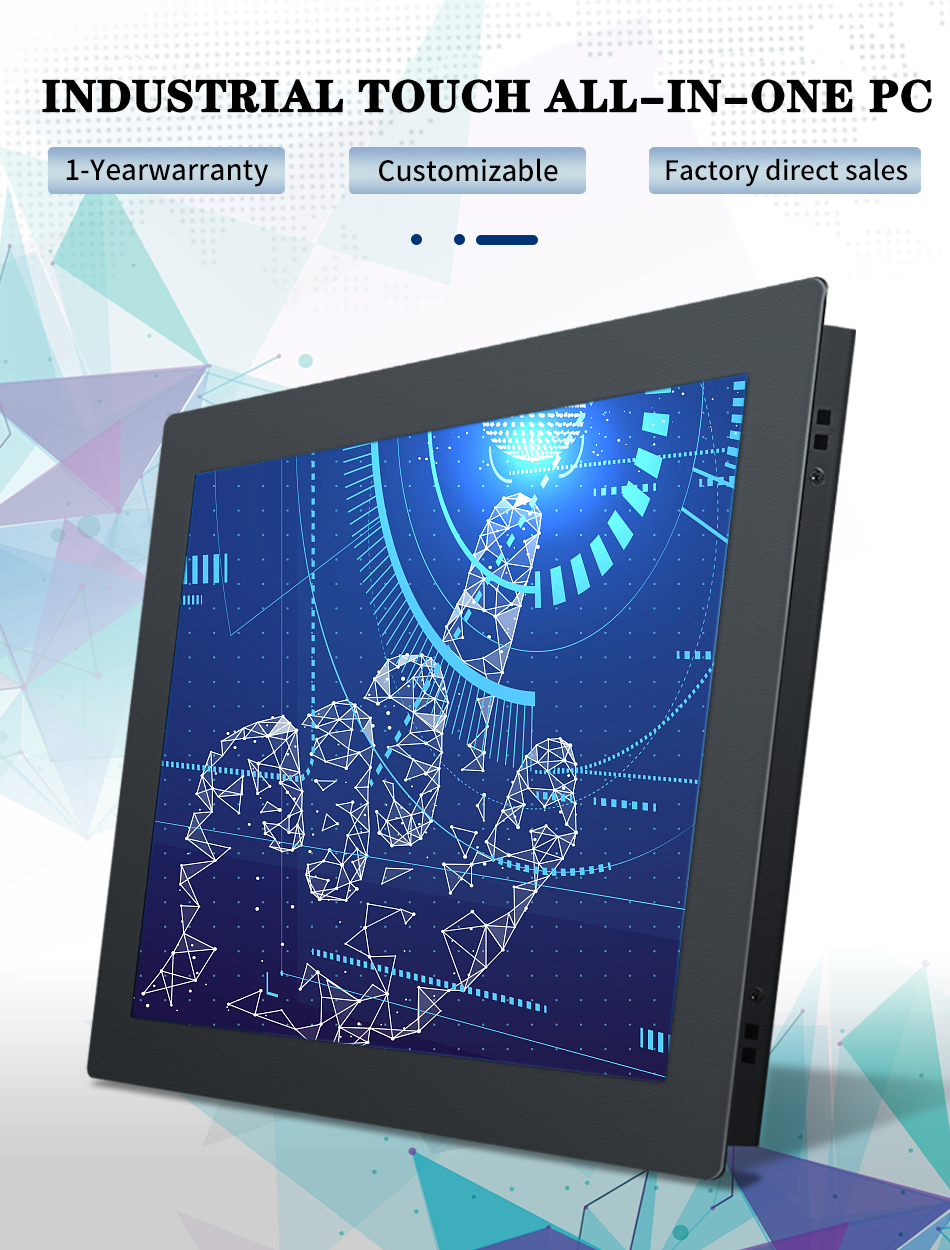

23.6 Inch buckle embedded Industrial Resistive Touch All-in-One PC, Celeron J1800/J1900/Intel Core i3 i5 i7 CPU, Resolution: 1920*1080

Industrial computer parameters:

Memory:Optional 2GB/4GB/8GB/16GB RAM

System memory Storage:Optional 32GB/64GB/128GB /256GB/512GB/1TB SSD

Graphics:IntelHD graphics card

Operating system:Windows 7,Windows 10,Linux(Windows 10 English system is installed by default)
Motherboard size:170mm*170mm

System Parameter：
Please contact us if you need the following or other CPUs, thank you.
1. Celeron processor J1800 (Dual core, 1MB cache up to 2.41 ≤ 2.58 GHz, TDP power consumption: 10w)
2. Celeron processor J1900 (Quad core, 2MB cache, maximum 2.00 ≤ 2.41 GHz, TDP power consumption: 10w)
3. Intel Core i3-3217U (Dual core, 3MB cache, 1.80 GHz, TDP power consumption: 17w)
4. Intel Core i5-3337U (Dual core, 3MB cache, 1.80 GHz, TDP power consumption: 17w)
5. Intel Core i7-3537U (Dual core, 4MB cache, 2.00 GHz, TDP power consumption: 17w)
6. Intel Core i3-3110M (Dual core, 3MB cache, 2.4GHz, TDP power consumption: 35w)
7. Intel Core i5-3210M (Dual core, 3MB cache, 2.5-3.1 GHz, TDP power consumption: 35w)
8. Intel Core i7-3540M (Dual core, 4MB cache, 3.00-3.70 GHz, TDP power consumption: 35w)
9. Intel Core i3-4120U (Dual core, 3MB cache, 2.0 GHz, TDP power consumption: 15w)

10. Intel Core i5-4300U (Dual core, 3MB cache, 1.9 GHz, TDP power consumption: 15w)
11. Intel Core i7-4500U (Dual core, 4MB cache, 1.8 GHz, TDP power consumption: 15w)
12. Intel Core i3-4100M (Dual core, 3MB cache, main frequency: 2.5 GHz, TDP power consumption: 37w)
13. Intel Core i5-4200M (Dual core, 3MB cache, main frequency: 2.5-3.1GHz, TDP power consumption: 37w)
14. Intel Core i7-4610M (Dual core, 4MB cache, main frequency: 3.0-3.7 GHz, TDP power consumption: 37w)
15. Intel Core i3-5010U (Dual core, 3MB cache, 2.1 GHz, TDP Power consumption: 15w)
16. Intel Core i5-5200U (Dual core, 3MB cache, 2.2-2.7 GHz, TDP power consumption: 15w)
17. Intel Core i7-5500U (Dual core, 4MB cache, 2.4-3.0 GHz, TDP power consumption: 15w)
18. Intel Core i3-6100U (Dual core, 3MB cache, 2.3 GHz, TDP power consumption: 15w)
19. Intel Core i5-6200U (Dual core, 3MB cache, 2.3-2.8 GHz, TDP power consumption: 15w)
20. Intel Core i7-6500U (Dual core, 4MB cache, 2.5-3.1 GHz, TDP power consumption: 15w)
21. Intel Core i3-7100U (Dual core, 3MB cache, 2.4 GHz, TDP power consumption: 15w)
22. Intel Core i5-7200U (Dual core, 3MB cache, 2.5-3.1 GHz, TDP power consumption: 15w)
23. Intel Core i7-7600U (Dual core, 4MB cache, 2.8-3.9 GHz, TDP power consumption: 15w)
24. Intel Core i3-8130U (Dual core, 4MB cache, 2.2-3.4 GHz, TDP power consumption: 15w)
25. Intel Core i5-8365U (Quad core, 6MB cache, 1.6-3.9 GHz, TDP power consumption: 15w)
26. Intel Core i7-8565U (Quad core, 8MB cache, 1.8-4.6 GHz, TDP power consumption: 15w)

Parameters of LCD Touch screen：
Brightness：250cd/m2-350cd/m2（Optional higher brightness LCD screen）
Contrast Ratio：1000:1
Viewing Angle：Horizontal(left/right): 150°(75°/75°)
Vertical(up/down): 150°(75°/75°)
Response Time：30 (Typ.)(Tr+Td) (ms)
Frame Rate：60Hz
Color system：PAL/ NTSC
power requirement of system：+ 12V DC power input(Support customized DC24V power interface)
Power adapter：input：AC100〜240V，50 / 60Hz 1.5A MAX
Output：60W Adapter（DC12V -- 5A）
Working temperature：-20°C〜60°C
Relative humidity：0％〜90％relative humidity, no condensatio
Plug：AU,EU,USA,UK plug available
VISA Hole distance：75*75mm

Delivery Time
Sample:1~5 working days.
10~100pcs:2~7 working days.
More than 100pcs :5~15 working days

★★★ SPECIAL REMINDER ★★★
LOGO/Product Model/Case Material/Add Touch Function/Add Built-in Speaker/Add Remote Control Function/Base Style/Screen Size/Interface Type/Power Type/Installation Mode(Wall-hang/Embedded/Open-frame),etc.,can be customized for you(But need to meet the requirements of MOQ).If you have this demand,please contact us,we will provide you with timely and thoughtful service!

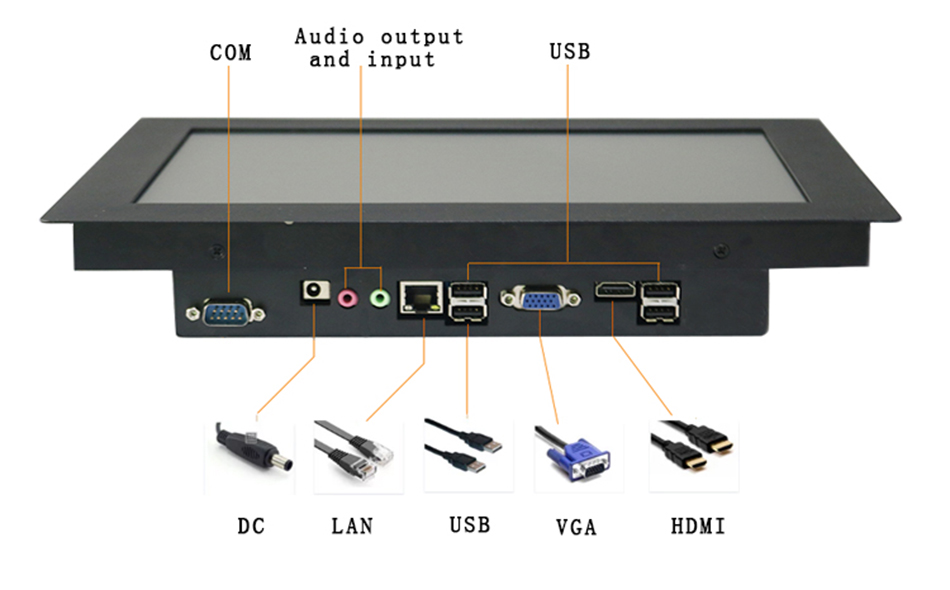

Backplane I/O interface: 4*USB2.0 interface, 1*HDMI interface, 1*VGAinterface,1*RJ45 Gigabit network interface, 1*Line out (green), 1*Mic (red), 1 *DC 12V power
Remarks: Support customized interfaces: such as DC24V power interface, aviation power interface, 6 Com interfaces, dual LAN network ports, etc. Please contact us for details, thank you.

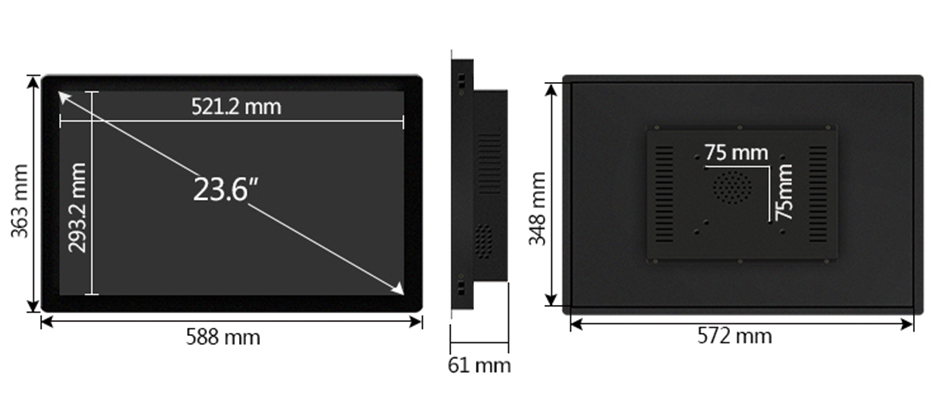

Size:23.6 inch
Resolution:1920*1080 ppi
Dimensions: mm

Built-in wireless WiFi
All computers have built-in WIFI, if you need external WIFI, please contact us directly.

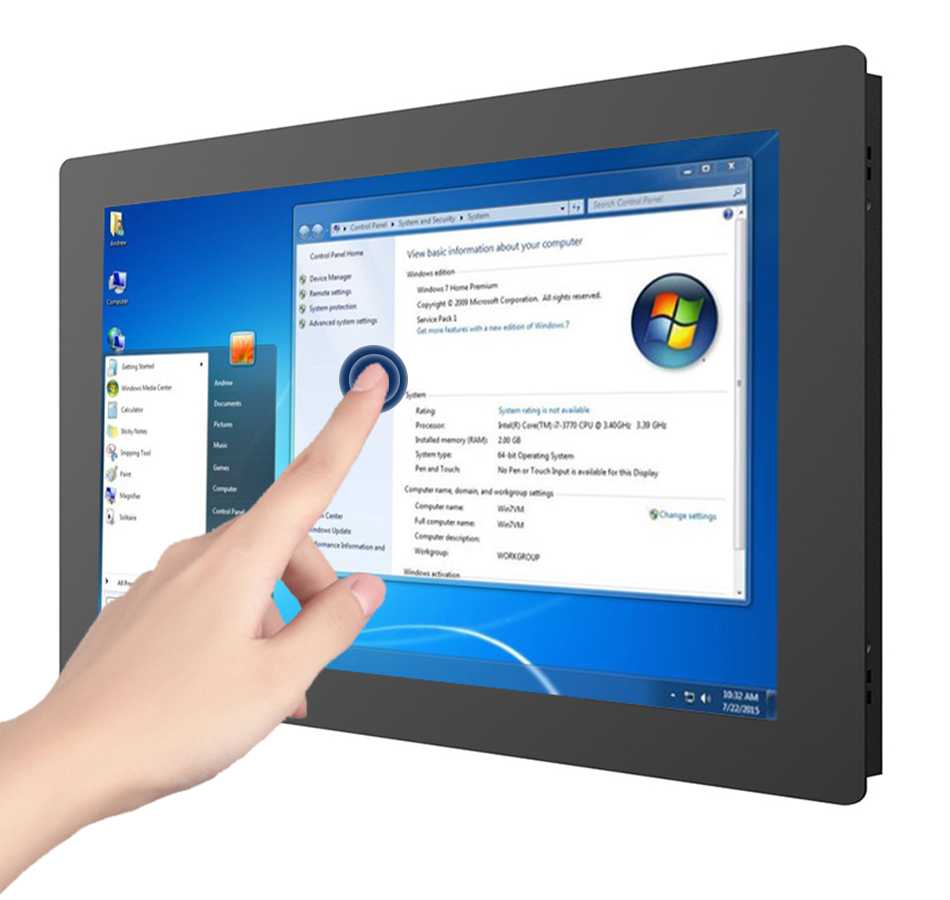

Resistive touch screen, One-finger touch
Resistive single-finger touch, the finger clicks anywhere on the system interface, you can operate quickly, and the touch has no drift, providing you with a more convenient touch platform

Support power on and run 24 hours a day, 365 days

The whole machine has the ability to run 24 hours a day, and is competent in all walks of life. It can be set to power on through the BIOS. It is suitable for an unstable environment that needs to be continuously powered on.

Efficient Heat Dissipation

The motherboard adopts the multi-row heat dissipation design of the metal back shell to dissipate heat. The technological breakthrough has a low noise heat dissipation effect, better stability and strong performance, no loud noise during operation, effectively protects the life of the accessories of the whole machine, and brings a better industrial use experience.

High and low temperature resistant design

The front frame is processed by high-precision CNC, and the steel body is forged by cold-rolling technology, which greatly increases the rigidity and compression resistance of the whole machine. It has been tested by a strict temperature control box and runs stably in harsh environments with large temperature differences.Through the controllable high temperature test, the product adapts to the temperature of -20℃~60℃.In between, even in harsh environments, there is no fear.

Detail describe：

The details determine the quality

Installation method

1. Embedded installation
①Before installation, the cabinet needs to be opened, and the opening size should be slightly larger than the opening size specified by the product.
②Place the product into the recessed installation hole reserved on the installation panel.
③There are two square holes on both sides of the device. When installing, use one end of the clip to fasten the square hole, and the screw head on the clip is against the cabinet.
Then tighten the screws, the other three prescription holes are installed in the same way, and the embedded installation can be completed.

2. Wall-mounted installation
①Fix the wall mount bracket A on the wall with expansion screws.
②The wall bracket B is installed on the back of the all-in-one machine with screws.
③ Insert the bracket on the back of the all-in-one machine into the wall bracket to complete the installation.

About usage:
This product is widely used in industrial production workshop/engineering machinery/NC equipment/medical equipment/video surveillance/factory automation equipment/self-service terminal/vehicle advertising machine and other scenes or fields.

FAQ (Frequently Asked Questions)
Q: What is the time limit and customs clearance fee for the package?
A: The general time limit for a package is the delivery date plus the express time limit. The amount paid for the order, including shipping, but excluding customs charges, is your responsibility. Due to the requirements of local customs policies, all importers have the obligation and responsibility to declare, assist with customs clearance and pay duties. If you have any objection to this, please contact us, thank you.

Q: Does the machine need to install the touch driver?
A: The touch driver needs to be installed.

Q: Where can I install the touch driver?
A: www.EETI.com

Q: How to install the touch calibration program?
A: After power on, download the corresponding touch driver from the website according to your host system, and then follow the prompts to install the touch driver. After successful installation, perform program screen calibration.

Q: Is the machine waterproof?
A: It is not waterproof, please contact us for the machine that needs waterproof.

Q: What is the standard installation method?
A: Embedded, wall-mounted.

Q: Does it support desktop installation?
A: Yes, but you need to buy a desktop stand.
